KA1MDA Article Archive
Originally published in
73 Amateur Radio
magazine
May, 1993 Issue

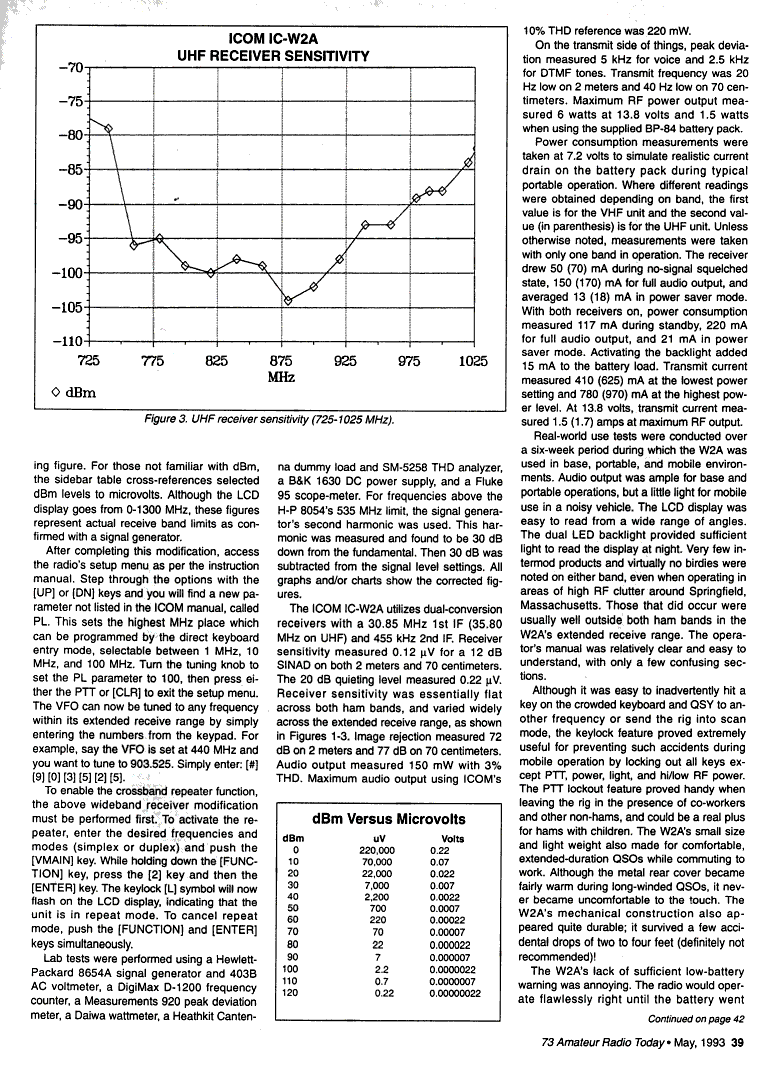

AUTHOR'S NOTE: The magazine deleted the minus signs in the DBM chart above.
The left column in the chart should read from 0 to -120 dBm.
